Alpine X009-TND

Your Ultimate Trundra Truck Upgrade

Your life is an adventure. Your active lifestyle is not confined to four walls, so you rely on your truck for work and play. The X009-TND is the upgrade you need to keep up with your busy life from work to play. Keep your factory controls and add enhancements like navigation, customizable short-cuts, Bluetooth® wireless technology and sound settings optimized for your truck – all controllable through the easy-to-use, large 9-inch touch-screen. With its oversized screen, integrated system and advanced technology, this premium system will restyle your truck and provide you with a high quality driving experience.


Quality Hard Keys You Can Feel

The X009-TND is equipped with external dedicated quality hard keys. The hard keys are uniform for a friendly custom dash integration and gives quick access to core functions such as navigation, sound control, vehicle information, volume, phone access, My Favorites and rear camera view (when used with an optional camera system).


Customizable Short-Cuts At Your Fingertips

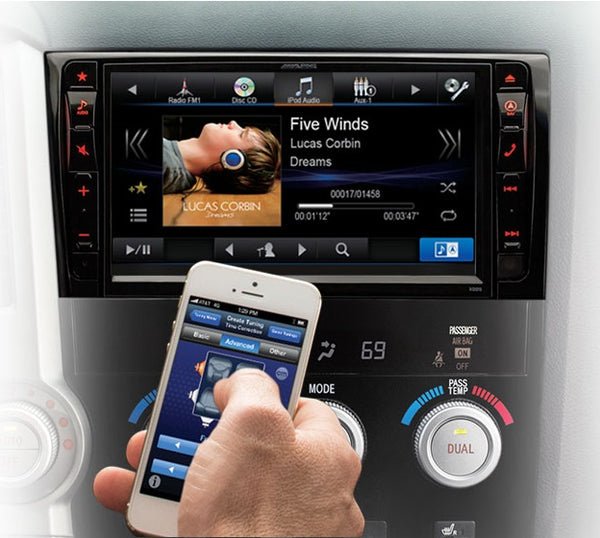

The My Favorites features offers up to ten pages of eight shortcuts per user for the features that you use the most, such as:

  • Audio Sources (HD Radio™, Pandora®, iPod®)
  • Phone Settings (Most-dialed Contacts)
  • Navigation Commands (Favorite Destinations, Quick Place Search)

A new shortcut soft key within all audio and hands-free sources makes it even easier to add sources than before. Set up “My Favorites” for up to two users on the X009-TND. Easily add, delete, re-name, and re-arrange your short-cut icons by dragging the icon(s) to a new location on the screen. Your settings are kept as a personal profile linked to your phone via Bluetooth.


Dual Zone Video Control

Don't want to listen to what the kids in the back are watching? Now you don’t have to! Enjoy your own source up front with separate video for the rear seat passengers to enjoy. The PKG-RSE3DVD Rear Entertainment System (sold separately) is a great addition to the X009-TND Restyle System.


Keep the Factory Controls with an iDatalink Maestro Module (Included)

Retains Select TUNDRA Truck Feature Variations*

  • Audio Information through Factory Display
  • Factory Amplifier Integration
  • Steering Wheel Controls
  • Media Player Control
  • Satellite Radio
  • Battery Voltage Display
  • Read/Check Engine Codes
  • Door Open Status and Warning
  • Customizable On-screen Vehicle Information


Become a Tuning Expert with TuneIt 2.0 App Integration

  • Expanded vehicle choices for easier sound system tuning
  • Share your sound tunings on Facebook
  • BassEngine SQ adjusts bass characteristics for different types of music
  • Simple and easy on-screen Facebook notifications


    Get the Best Sound with Optical Digital Output

    For unrivaled sound quality, expect nothing less than the best. The X009-TND uses a 24-Bit DAC and optical digital output for ultimate sound quality with all your digital media sources.


    Wherever Life Takes You, You’re Covered

    The X009-TND offers reliable navigation to wherever work or play may take you with preloaded NAVTEQ® map data of the United States and Canada, including Alaska, Hawaii, Puerto Rico and the Virgin Islands, which translates to maps galore. With turn-by-turn instructions delivered by Text-to-Speech (TTS) technology, street names, freeway numbers and freeway exit names are announced clearly through your vehicle’s audio system. Choose from different intuitive map view options, such as 3D mapping, split map, and turn-by-turn arrow view. This unit also features Alpine's exclusive Graphical User Interface with intuitive screen graphics, so it's easy for you to find your way. Thanks to the included free lifetime traffic service, see the congestion ahead of time so you can choose an alternate route. Get quick and easy directions from start to finish.

    HDMI: More Entertainment With Just One Cable

    Now it's possible to enjoy even more content than ever before through your X009-TND. The Alpine 9-inch comes equipped with HDMI compatibility delivering an all-digital audio and video connection via a single cable.


    Built-In Digital HD Radio®

    Alpine does HD. Get all the music and programming you want to hear in a crystal-clear digital format. FM stations with CD-quality sound and AM stations with FM-quality sound, both with virtually no distortion. Extend your music choice further with multi-casting capability HD1, HD2, and HD3 and you'll hear more talk and music content from the stations you already receive. Alpine’s exclusive Smart Reception Management keeps you tuned in to your favorite HD digital sub-channels, even when you’re in an area with limited digital reception.


    Made for iPod® / Works with iPhone®

    It’s convenient to control your iPod or iPhone in the car – enjoy seamless operation of your iPod in addition to full control of all your favorite media sources. Control all search options of your iPod directly from the X009-TND via Playlist, Artist, Album, Song, Genre, Podcast or Composer. The USB connection allows for high-quality iPod / iPhone playback and delivers an even faster access speed so you’ll find songs as quickly as you expect to find them on your iPod / iPhone.


    Satellite Radio Ready

    Upgrade your sound experience and expand your entertainment choices by adding SiriusXM satellite radio to your X009-TND. Using the SiriusXM Connect Vehicle Tuner and a SiriusXM subscription (both required and sold separately), you get access to an expanded channel lineup of new and exclusive commercial-free music, sports and comedy that includes SiriusXM Latino, a new suite of Spanish-language programming. The X009-TND lets you control SiriusXM features including iTunes® Tagging; SiriusXM Replay™ for pause, rewind and replay of up to 30 minutes of live SiriusXM content; Song Alert and Artist Alert for notifications when a favorite song or artist is playing on any channel; and Game Alert™ for notifications when your favorite teams from the NFL, NBA, NHL or college football and basketball leagues are playing live.



    • Screen Size: 9 inch WVGA
    • LCD Type: Transparent Type TN LCD
    • Operation System: TFT Active Matrix
    • Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
    • Effective Number of Picture Elements: 99.99%
    • Illumination System: White LED Backlighting
    • Colour System: NTSC, PAL


    • GPS Antenna Type: Micro-strip Planar Aerial
    • Reception Frequency: 1575.42 ±1 MHz
    • Reception Sensitivity: -130 dB Maximum
    • Reception Method: Parallel 12 Channels

    CEA-2006 Power Ratings

    • CEA-2006 Power Rating: 4 Ω @14.4V Ƈ%THD+N, S/N 80dBA (ref.1W into 4 Ω), 18W x 4

    Max Power Output Ratings

    • Max Power Output: 4 x 50 W

    FM Tuner

    • Tuning Range: 87.7 - 107.9 MHz
    • Mono Usable Sensitivity: 9.3 dBf (0.8 µV / 75 ohms)
    • 50dB Quieting Sensitivity: 13.5 dBf (1.1 µV / 75 ohms)
    • Alternate Channel Selectivity: 80 dB
    • Signal-to-Noise (S/N) Ratio: 65 dB
    • Stereo Separation: 35 dB
    • Capture Ratio: 2 dB

    AM Tuner

    • Tuning Range: 530 - 1,710 kHz
    • Usable Sensitivity (IEC Standard): 22.5 µV / 27 dBf


    • Bluetooth Version: Bluetooth V2.1+EDR
    • Output Power: +4 dBm Max. (Power class 2)
    • HFP: HFP (Hands Free Profile)
    • HSP: HSP (Head Set Profile)
    • A2DP: A2DP (Advanced Audio Distribution Profile)
    • AVRCP: AVRCP (Audio/Video Remote Control Profile)

    Disc Player

    • Frequency Response: 5 -20k Hz ±1 dB
    • Channel Separation (at 1kHz): 85 dB
    • Dynamic Range (at 1kHz): 95 dB
    • Total Harmonic Distortion (at 1kHz): 0.008%
    • Wow & Flutter (%WRMS): B.M.L.
    • Horizontal Resolution: 500 lines or greater
    • Video Ouput Level: 1 Vp-p (75 ohms)
    • Signal-to-Noise Ratio (video): 100 dB
    • Signal-to-Noise Ratio: DVD: 60 dB

    Connection for USB

    • USB Requirements: USB 1.1/2.0
    • Max. Power Consumption: 1,000 mA
    • USB Class: Mass Storage Class, Play From Device
    • File System: FAT 12/16/32
    • MP3 Decoding: MPEG-1/2 AUDIO Layer-3
    • WMA Decoding: Windows Media™ Audio
    • AAC Decoding: ACC-LC Format ''.m4a'' File
    • DivX Decoding: ''.divx'', ''.avi'' File
    • Number of Channels: 2-Channel (Stereo)
    • Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate.
    • Total Harmonic Distortion (at 1kHz): 0.008%
    • Dynamic Range (at 1kHz): 95 dB
    • Signal-to-Noise Ratio: 100 dB
    • Channel Separation (at 1kHz): 85 dB

    Sound Tuning

    • Subwoofer Level Adjustment: 0 to +15
    • Subwoofer Phase Setting: 0° or 180°
    • BASS ENGINE SQ: 5Mode, Level 0 to +6
    • High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
    • Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
    • Parametric Equalizer (Band 1): 20 - 100 Hz
    • Parametric Equalizer (Band 2): 63 - 315 Hz
    • Parametric Equalizer (Band 3): 125 - 500 Hz
    • Parametric Equalizer (Band 4): 250 - 1k Hz
    • Parametric Equalizer (Band 5): 500 - 2k Hz
    • Parametric Equalizer (Band 6): 1k - 4k Hz
    • Parametric Equalizer (Band 7): 2k - 7.2 k Hz
    • Parametric Equalizer (Band 8): 5.8k - 12k Hz
    • Parametric Equalizer (Band 9): 9k - 20k Hz
    • Parametric Equalizer (Gain): -7 to +7
    • Time Correction: 0.0 - 9.9ms (0.1ms step)
    • Application Volume Level: -14 to +14
    • High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
    • High Pass Filter (Gain): -12 to 0 dB
    • Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
    • Low Pass Filter (Gain): -12 to 0 dB


    • Din Size: 2DIN
    • Chassis Size (W x H x D) mm: 178 x 100 x 164 mm
    • Nose Piece Size (W x H x D) mm: 189.5x 120x 10.25 mm


    • Power Requirement: 14.4 V.DC (11-16V allowable)
    • Pre Output Voltage (Before Clipping): 4 V / 10k ohms
    • AUX Audio Output Level: 1.2 V / 10k ohms
    • Maximum Mounting Angle: 30°
    • Weight: 2.9 kg


    Navigation Function

    • 3 Positioning Sensors: GPS, Gyroscope, Vehicle Speed Pulse
    • Direct Phone Call from POI data:
    • Highway Mode:
    • Tunnel Mode:
    • 3D Motorway Junction View: Junction View with Sign Post
    • Drive Lane Suggestion:
    • 3D maps with elevation model:
    • Map Display Mode: 2D Heading Up, 2D North Up, 3D
    • 3D City Mode: 3D Building/Icon Display
    • Advanced TMC Mode:
    • Eco Route Search:
    • 7 Alternative Route Recommendation:
    • Advanced Route Planning:
    • Smart Routes using historic traffic patterns:
    • Free Form Search:
    • Partial Name Search Smart Search:
    • Advanced POI Functions:
    • Post Code Search:
    • Advanced Address Search:
    • Voice Guidance Language: 3 Languages,
    • Menu Language: 24 Languages
    • Map Coverage: USA and Canada (including Alaska, Hawaii, Puerto Rico, Virgin islands )

    Map & Database

    • Map Database Update (Method): Online Map Update


    • Memory Presets: FM:12 / AM:6
    • Memory: Auto Memory
    • Seek Mode: Local / DX Selection

    HD Radio®

    • HD Radio®: HD Radio Tuner Built-In
    • Status Indicator: Digital Reception Indicator
    • Signal Switching: Automatic Digital/Analog Switching
    • Multi-Casting: Multi-Cast HD1, HD2, HD3
    • iTunes® Tagging: iTunes Tagging Supported


    • Bluetooth Module Built-In:
    • Hands Free Calling: HFP (Hands Free Profile) Compatible
    • Music Streaming: A2DP (Advanced Audio Distribution Profile) Compatible
    • Music Streaming Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.4 Compatible
    • Connection: SSP (Simple Secure Pairing) Supported
    • Phone Book: Phone Book Synchronization
    • Shortcut Dialing: 4 Preset Memory (per phone)
    • Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
    • Auto Answer:
    • Redial Function:
    • Call History: Dialed Call / Received Call / Missed Call
    • Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
    • Phone Battery Level Indicator:
    • Firmware Update:
    • Microphone: Microphone Included
    • Advanced BLUETOOTH® Technology:
    • Device Name Display:
    • DTMF (Touch-Tone) Function:
    • Signal Strength Indicator:
    • Menu Language Selection: 24 Languages
    • Individual Profile Connection: Hands Free Phone and Music Streaming

    Connection for iPod®

    • Compatibility for iPod®/iPhone®: Made for iPod touch 5th/4th/3rd/2nd/1st Gen., iPod nano 7th/6th/5th/4th/3rd/ Gen., iPod classic 160GB/120GB/80GB, iPod with video, iPhone5S,iPhone5C, iPhone5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G
    • Connection: KCU-461iV Required (Sold separately)
    • Music & Video Playback Compatibility:
    • Artwork Display:
    • Available Selections: Playlist/Artist/Album/Song/Podcast/Genre/Composer/Audiobook
    • Alphabet Search:
    • Direct Up/Dn: Playlist/Artist/Album/Podcast/Genre/Composer
    • M.I.X. (Shuffle) Capability: Song, Albums, All
    • Repeat:
    • Battery Charging:

    Connection for USB

    • USB Connection: USB Extension Cable Included
    • Music File Playback: MP3/WMA/AAC Playback
    • Music & Video Playback Compatible:
    • Video File Playback: DivX Playback
    • File/Folder Name Search:
    • Tag Info Search:
    • Folder Up/Down:
    • M.I.X. Random Play:
    • Repeat:

    Satellite Radio

    • SiriusXm Ready: SVX-200 Required
    • Connection: Simple Plug'N Play Compatible
    • Preset Memory: 18 Preset Memory
    • My Game / My Music Alert: My Game / My Music Alert Compatible
    • Instant Replay: Instant Replay Compatible
    • iTunes® Tagging: iTunes Tagging Compatible

    Disc Player

    • Disc Type: DVD/CD Player
    • Disc Playback Type: DVD-Video, CD, CD-R/RW, DVD±R/±RW
    • DVD Direct Menu Control:
    • CD Text Display:
    • CD Text Search:
    • M.I.X. Random Play:
    • Repeat:
    • DAC: 24 Bit DAC
    • Playable Format: DVD-Video, CDDA, MP3/WMA/AAC, DivX

    Sound Tuning

    • Bass Engine Pro:
    • Subwoofer Level Adjustment:
    • Subwoofer Phase Select:
    • Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop,  Easy Listening, Country, Classical
    • 9-band Parametric Equalizer:
    • MediaXpander:
    • Time Correction: 6-Channel Digital Time Correction
    • Crossover: Digital Crossover Setting
    • Application Volume Level Setting:
    • Sound Setting Data Download:
    • Easy, Step-by-Step Sound Customization:
    • Alpine TuneIt™ App Ready :


    • Power Output: 4 x 50 W High Power Amplifier
    • Display: 9 inch WVGA High Resolution Display
    • Display Backlighting System: White LED Backlighting System
    • Control Type: Touch
    • Automatic Setting Change: 2 Users
    • High Grade Audiophile Design:
    • Display Color Selection: 5 Background Colors (Blue/Red/Amber/Green/Black) Selectable
    • AUX Input: 2 A/V AUX Inputs
    • AUX Output: 1 A/V AUX Output
    • PreOut: 3 PreOuts (4V, Front/Rear/Subwoofer)
    • Steering Wheel Remote Control Ready:
    • Remote Control Ready:
    • VisualEQ:
    • Live Contrast Adjustment:
    • Menu Language: 24 Languages (for AV/Bluetooth), 29 Language (Navigation Menu and Voice Guidance)
    • Clock:
    • Auto Dimmer:
    • Power Antenna Lead:
    • Remote Turn-On:
    • Firmware Updatable:
    • 50/50 Split Screen:
    • My Favorites Function:
    • Optical Outputs:
    • HDMI Input:
    • Navigation Guidance Mix:
    • Camera Connection & Built-in Controls for Multi-View Camers:
    • Camera Guide Line Adjustment:
    • Rearview Camera Display Automatic Boot-up:
    • Simple Mode & Info Mode Display Selection:
    • StartStop function (for idling stop):
    • iDatalink :
